B20M Digital Microphone Hub

Description

Technical data:

  • Dimensions: 160 x 90 x 30 mm (LxWxH)
  • Weight: approx. 400 g
  • Plug-in power supply: 12V/3A
  • USB-C cable
  • RJ45 socket for CAT cabling of the microphones

Inputs

  • DMIC: digital microphone connection
  • DEVICE: USB-C cable connection for local computer
  • AEC-REF: Audio input as reference signal, from remote participant
  • WIRELESS: Audio input signal from a local wireless microphone
  • PC: Audio input signal from a local computer
  • LINE-IN: Audio input signal from local audio equipment

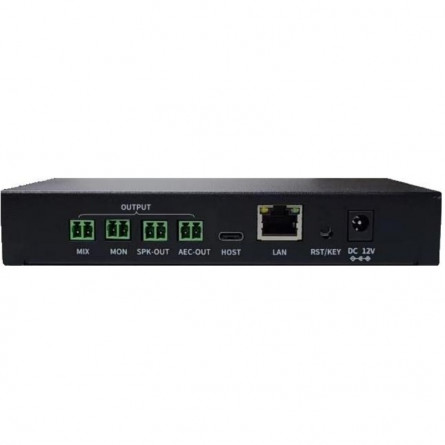

Outputs

  • MIX: Audio output signal from local microphone and remote audio signal
  • MON: monitor signal from local microphone to local output
  • SPK-OUT: Audio output of the remote audio signal to the local loudspeaker
  • AEC-OUT: Audio output from local microphone to local terminal / recording host
  • HOST: Reserved USB host interface (not activated)
  • LAN: RJ45 connection to the local network
  • DC 12V/3A
Experts

For each product on devicebase there is the possibility to become a product expert. This way you can show the public (industry, potential customers) that you are a specialist for specific devices.

The position of product expert can only be achieved by high quality contributions.

The user who collects the most points within a product becomes the number one product expert.

inactive Manufacturer

Rocware®B20M Digital Microphone Hub

The digital microphone hub is connected to the computer via USB-C cable. One or more RM702 microphones (max. 6 microphones) can be connected in series via CAT cable (cascading).
